ARMREST MODIFICATION GUIDE

We designed our 70 Series Cup Holder Armrest Pro's to be easily modified to suit almost any Land Cruiser. With minor adjustments to the bracket, you can ensure a perfect fit for your specific Land Cruiser model, including:

  • 40 Series
  • 60 Series
  • 80 Series
  • 100 Series
  • Older 70 Series'

This flexibility ensures you can enjoy the comfort and functionality of our armrests regardless of your Land Cruiser's generation.

STEP 1

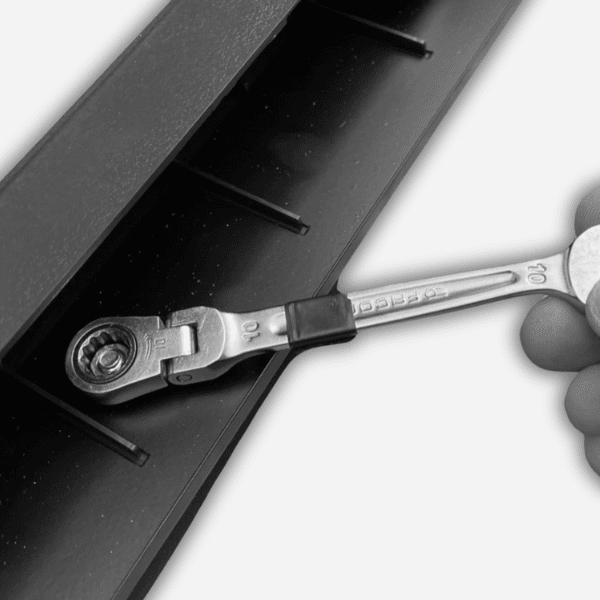

UNDO BOLTS

Locate the bolts securing the aluminium mounting plate to the armrest body. Use your wrench or socket set to loosen and remove these bolts completely.

STEP 2

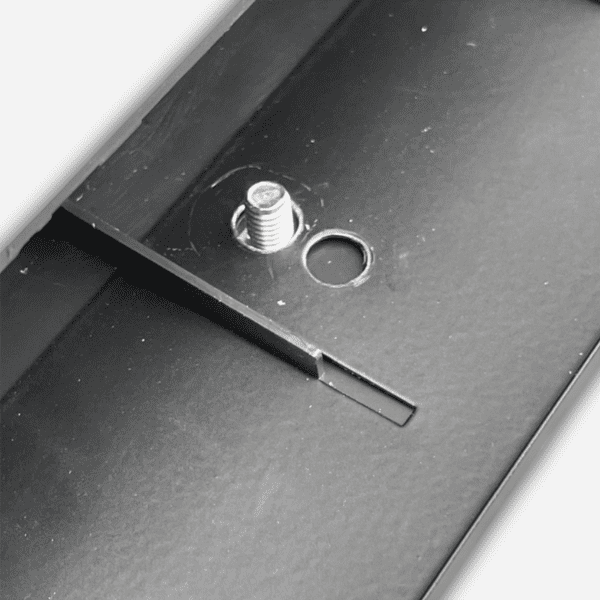

REMOVE MOUNTING PLATE

Once the bolts are removed, carefully detach the aluminium mounting plate from the armrest body.

STEP 3

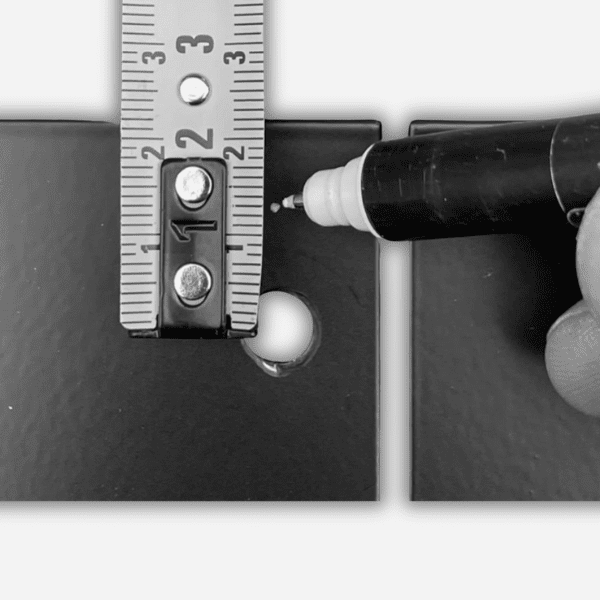

MEASURE & MARK

Determine the desired position of the mounting plate on the armrest for your specific Land Cruiser version. Use the marker to make a clear mark on the armrest body where the new mounting hole will be drilled.

STEP 4

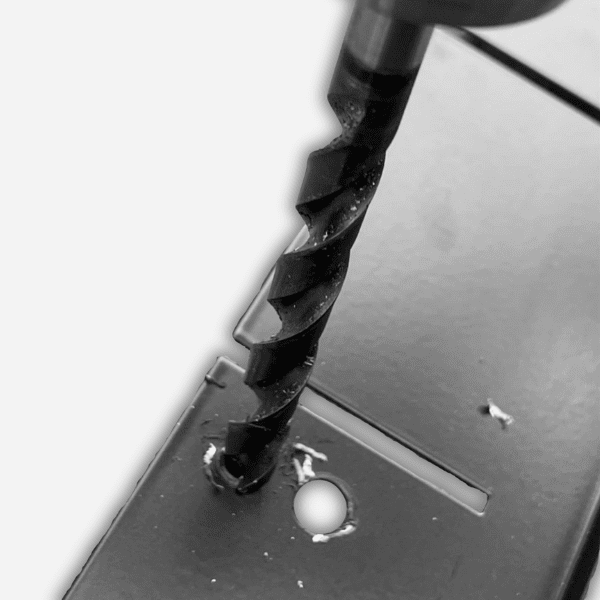

DRILL NEW HOLE

Carefully drill a new hole through the armrest mounting plate at the marked location. Ensure the drill bit size matches the diameter of the old hole.

STEP 5

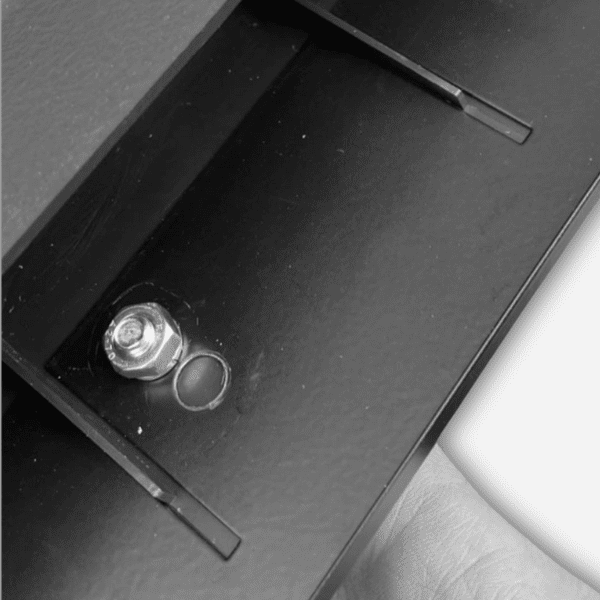

REATTACH MOUNTING PLATE

Align the mounting plate with the newly drilled hole and the original bolt holes on the armrest body. Re-insert the mounting plate bolts and tighten them securely using your spanner or socket set.

STEP 6

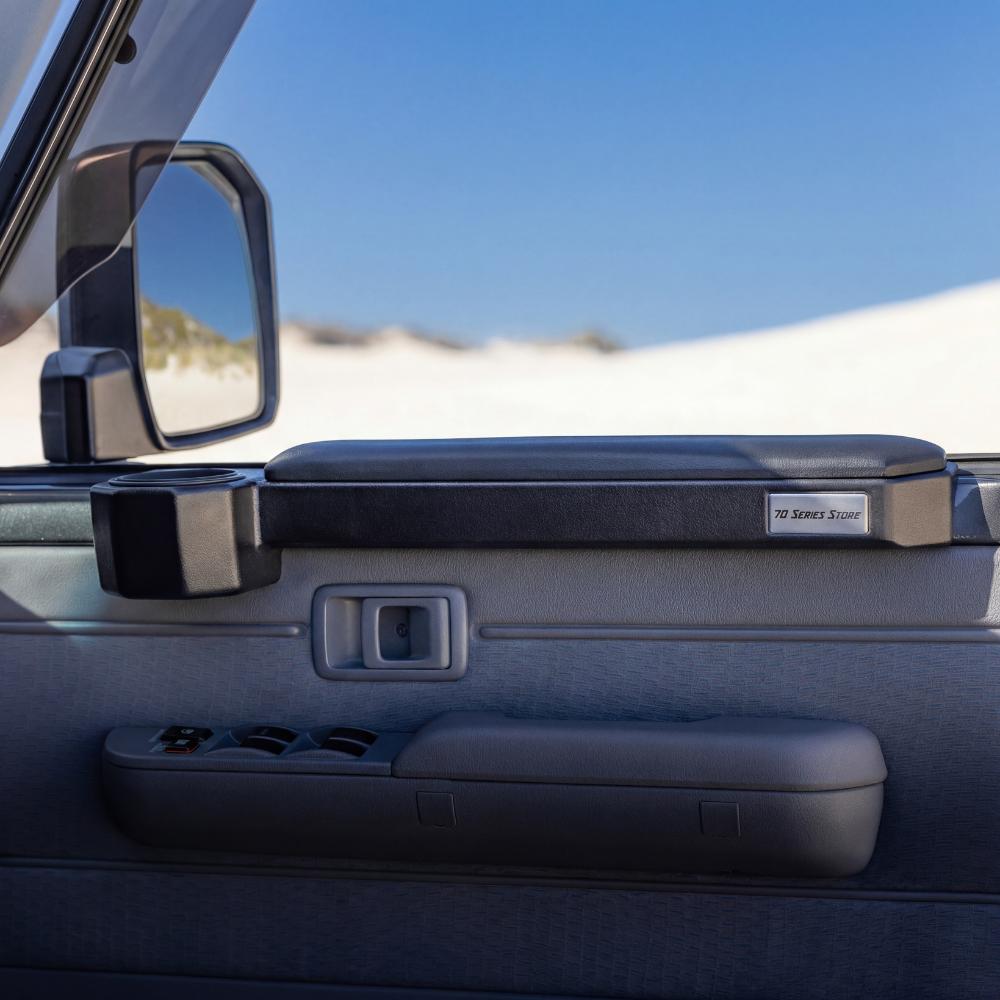

INSTALLATION

With the modified armrest ready, apply the door protection sticker, magnetise the magnets and place in your desired location - make sure you can reach your drink nice and easy!
